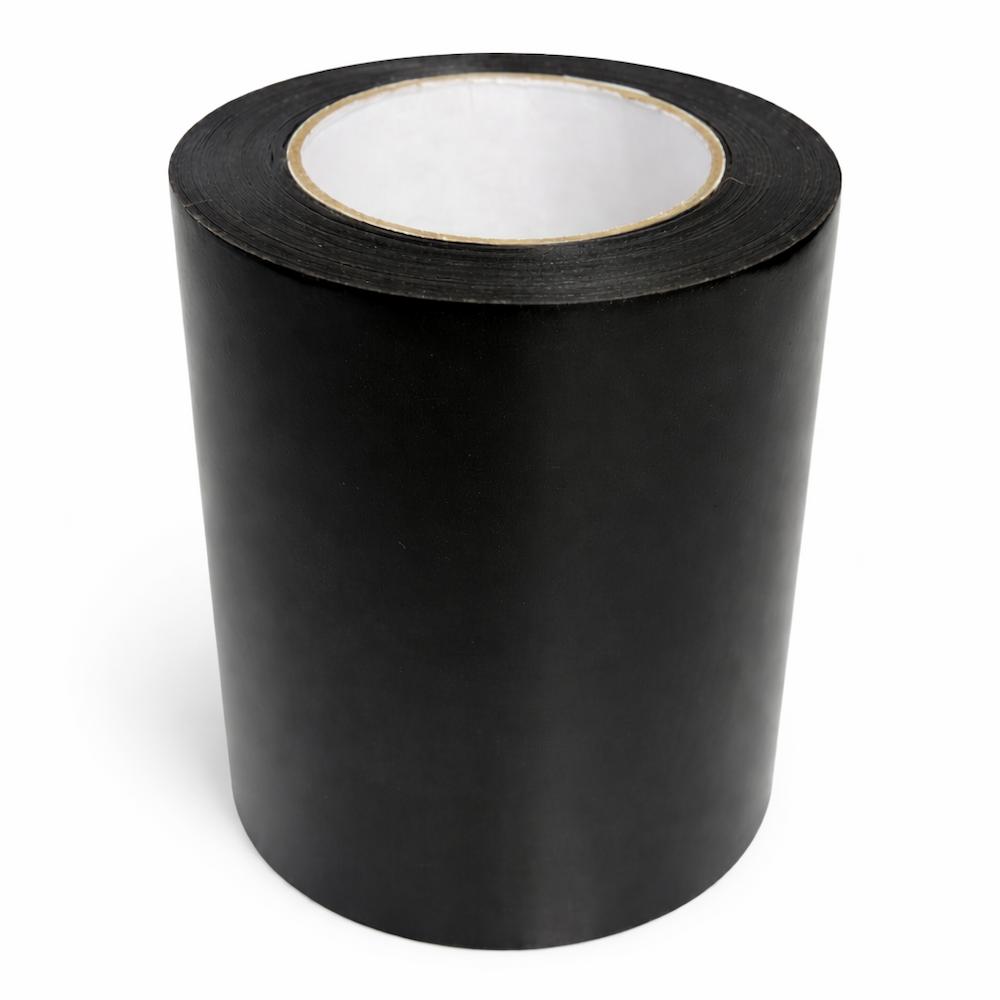

Bodenlink FrameFlash Pro | 6 in x 50 ft (152mm x 15.2m)

Heavy-Duty Butyl Flashing for Window & Door Perimeters

Engineered for the Critical Interface.

FrameFlash Pro is a high-performance, self-sealing butyl membrane designed to waterproof the most vulnerable points of the building envelope. Unlike asphalt-based flashings that become brittle in the cold, Bodenlink Butyl remains permanently flexible, absorbing structural movement and thermal expansion without compromising the seal.

Technical Specifications

Why Professionals Choose FrameFlash Pro

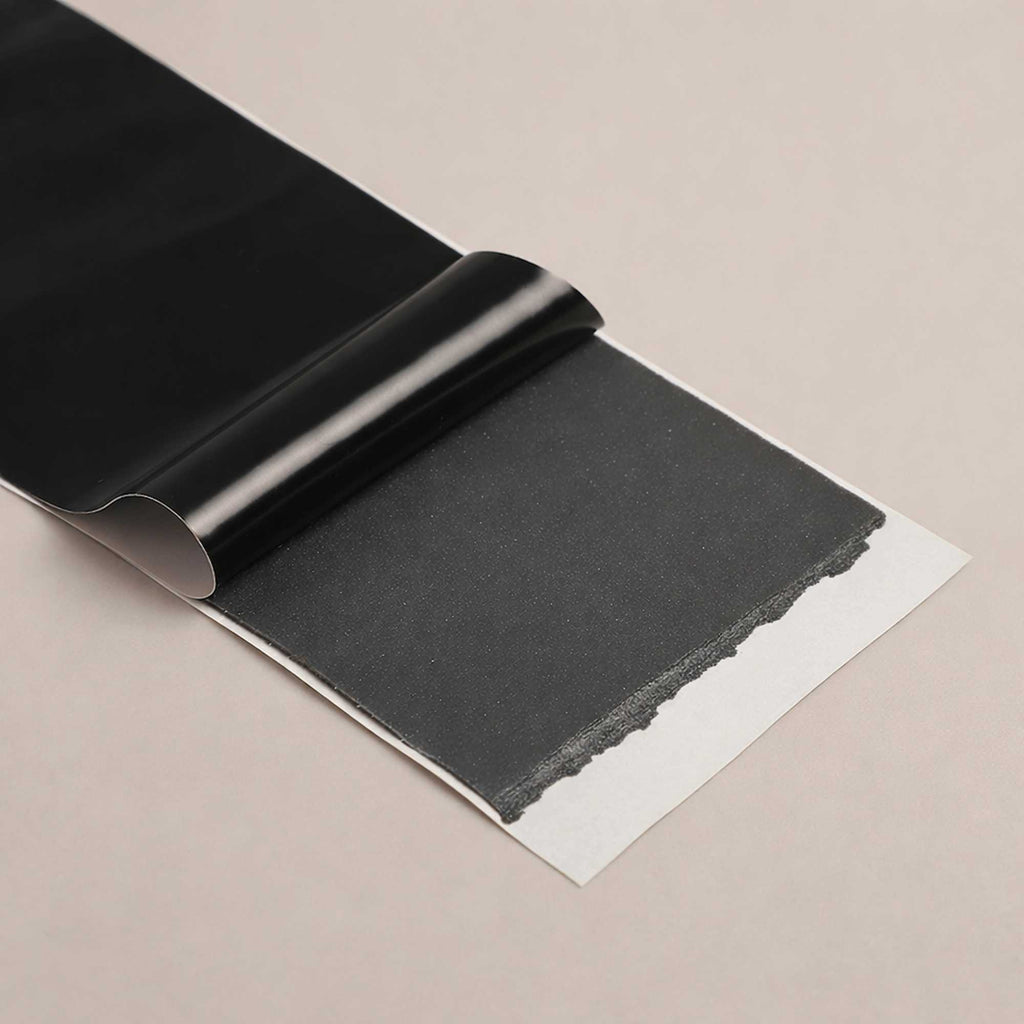

• Self-Healing Technology: The malleable butyl core automatically seals around nail and screw penetrations, preventing water tracking behind the flange.

• Corner Conformability: The flexible facer allows for seamless folding around rough opening corners and sill pans without tearing or requiring corner patches.

• All-Weather Application: Superior initial tack even in damp or cold conditions where standard acrylic tapes fail to bond.

• Chemical Stability: 100% compatible with common silicone and polyurethane sealants (won't dissolve or bleed).

Primary Applications

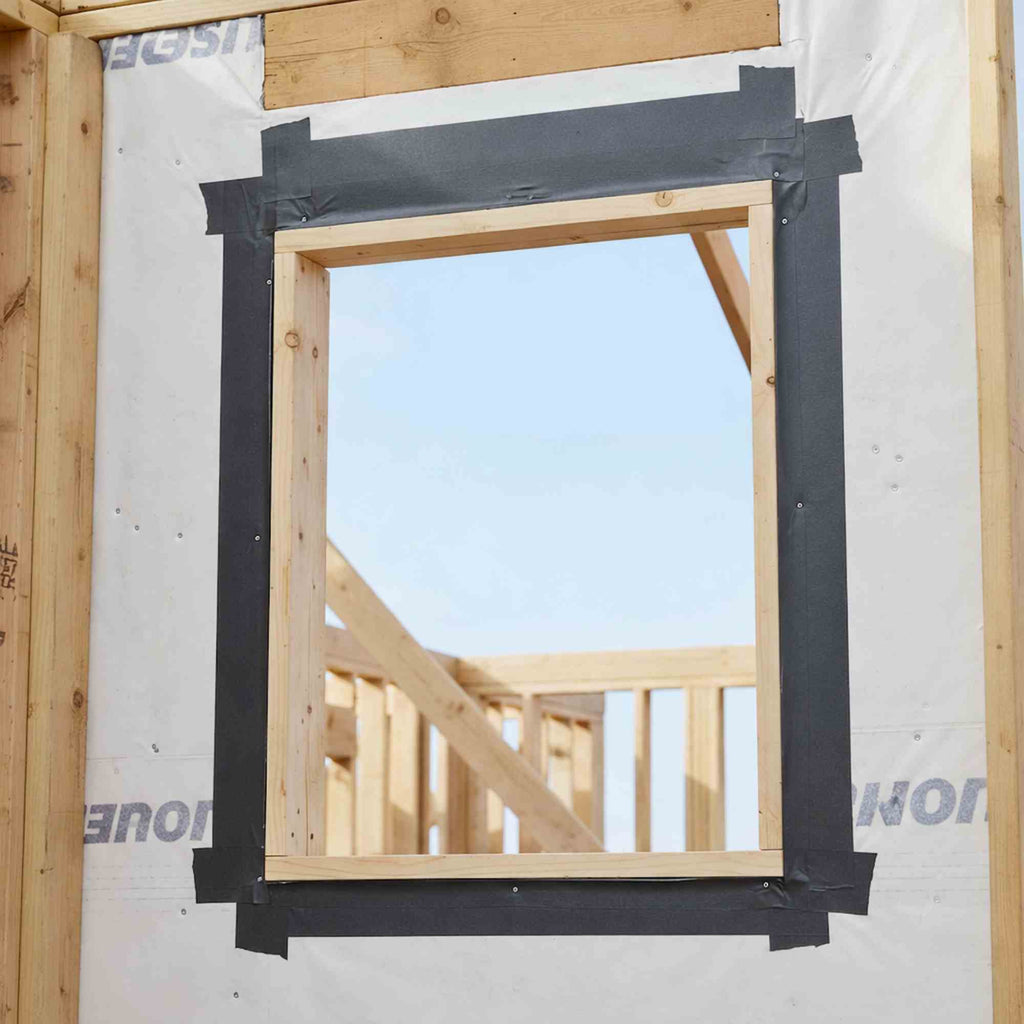

• Window Sills & Heads: Full 6-inch coverage for deep sill pan protection.

• Door Thresholds: Heavy-duty abrasion resistance for entry doors and sliding glass doors.

• Wall Penetrations: Sealing around dryer vents, hose bibs, and exterior lighting fixtures.

• Deck Ledgers: Protecting the rim joist connection from standing water.

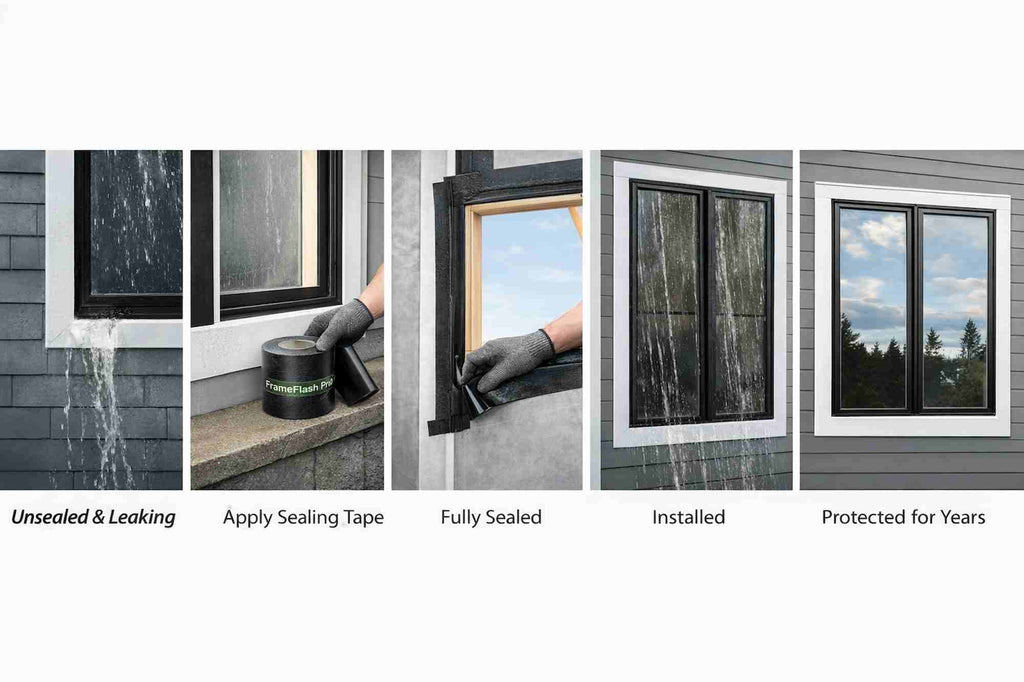

Installation Guidelines

1. Prep: Surface must be clean, dry, and free of frost or loose debris.

2. Apply: Peel back the release liner 6-12 inches at a time. Center tape over the joint/gap.

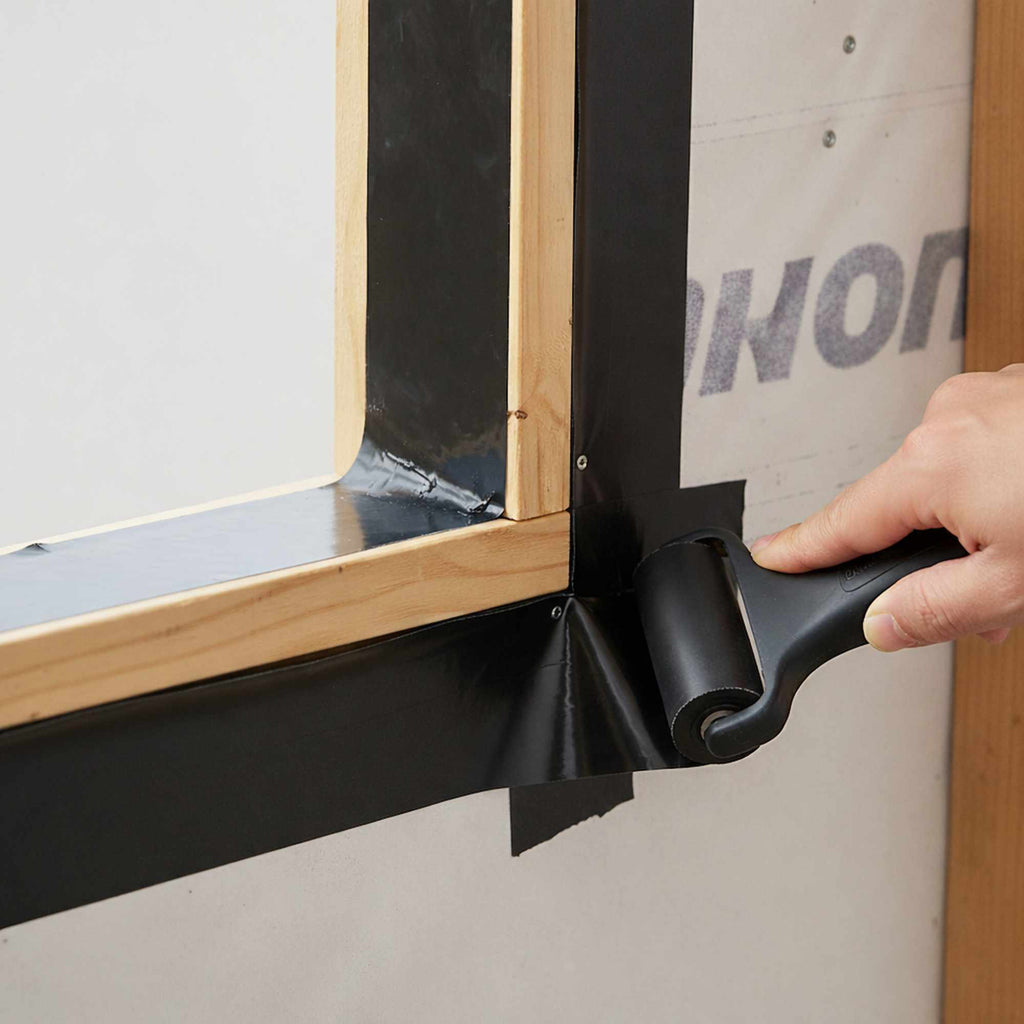

3. Pressure: Firmly roll the entire surface with a J-roller or hand pressure to activate the butyl bond. Pressure is key to a permanent seal.

4. Overlap: Maintain a minimum 2-inch overlap on all seams in "shingle fashion" (bottom to top) to ensure water runoff.
